I watched my friend's brand-new gaming rig shut down mid-game three times in one night. He spent $2,000 on components but cheaped out on the power supply. The PSU couldn't handle his RTX 4090 and Intel i9 under load. His system kept crashing, and he risked damaging every single component.
Here's the truth: most people either buy underpowered supplies that cause instability or waste money on 1000W units when they need 650W. Both mistakes cost you. A PSU Wattage Calculator solves this problem in under two minutes by telling you exactly what your build requires based on real power consumption data.
Why You Can't Just Guess Your Power Supply Needs
Every component in your PC draws power. Your CPU pulls watts during processing. Your graphics card spikes when rendering frames. Your RAM, SSD, hard disk drive, and even RGB fans consume electricity.
Add it all up wrong, and you get one of two problems. Buy too small, and your system crashes under load. Buy too large, and you're paying for capacity you'll never use while your electricity bills creep up from running an inefficient unit at low loads.
The solution? Use an online tool that does the math for you. A quality calculator takes your component list and estimates the total wattage your build needs, measured in watts and amps, then suggests the right PSU size with a safety margin built in.
How This Calculator Actually Works
The tool function is simple. You select your central processing unit brand (AMD or Intel), your chipset series, and your specific model. Similar to picking a car, you're identifying what's under the hood.
Next comes your motherboard. You pick the form factor—ATX, E-ATX, micro ATX, mini-ITX, or less common options like SSI CEB, SSI EEB, XL-ATX, or even the thin mini-ITX. Each type has a specific spot in your case and draws a set amount of power.
Then you configure your graphics card. NVIDIA GPUs from different series pull vastly different power. A modern RTX 5080 power requirements can hit 400W alone during gaming or professional work.
You add your random access memory (DDR5, DDR4, or DDR3), noting how many sticks you plan to install. Each module draws power. Same goes for storage—solid state drives and hard disk drives at various RPM speeds, whether they're attached directly or through cables.

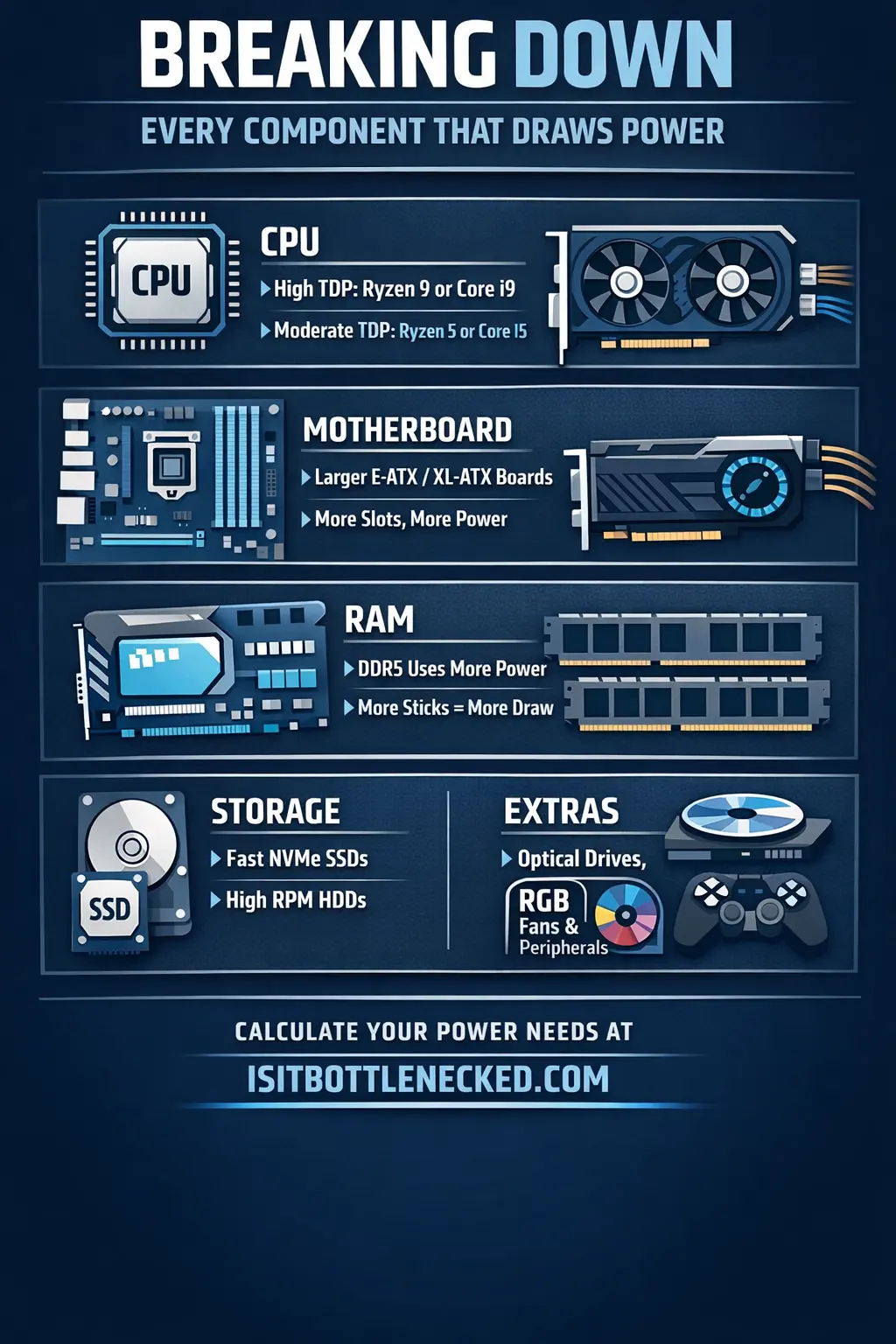

Breaking Down Every Component That Draws Power
CPU: Your central processing unit is the control center. Intel and AMD chips have different TDP ratings. A Ryzen 9 or Core i9 pulls more watts than a Ryzen 5 or Core i5.
GPU: The graphics card typically consumes the most power in gaming PCs. High-end models need multiple pin connectors—some require a combination of 8-pin and 6-pin cables to receive enough electrical current.
Motherboard: The board itself distributes power to everything. Larger boards like E-ATX or XL-ATX support more slots and devices, which means slightly higher consumption.
RAM: Memory sticks draw power based on type and quantity. DDR5 consumes more than DDR4, and eight sticks use more than four. Be aware of how many you're installing.
Storage: Solid state drives, especially high-speed NVMe models, draw less than traditional hard drives. HDDs with higher RPM speeds (7200 RPM vs 5400 RPM) consume more. Each installed drive adds to the total.
Extras: Optical drives (CD, DVD, Blu-ray, or combo ROM), RGB fans, sound cards, and any peripherals you connect all consume watts. Don't forget these add-ons when you calculate.
The Math Behind Wattage Calculations
Power is measured in watts. The formula is straightforward: multiply the electrical current drawn (in amps) by the voltage (in volts). The result tells you how much power each device requires.
Most desktop components run on 12V rails from your PSU. Your calculator estimates amperage needs across all components, converts everything to watts, then adds it up.
Here's the key part: you don't want a unit that barely covers your needs. If calculations initially suggest 500W, good practice says buy a 600W or 650W supply. This provides a safety margin, ensuring your PSU can handle peak demands during gaming or rendering without preventing issues from underpowering.
Why You Need Headroom Above Your Calculated Number
Components spike above their rated TDP. A GPU that's rated for 350W can momentarily pull 400W during intense scenes. CPUs do the same during heavy processing.
Choosing a PSU slightly higher than your calculations prevents instability. It also leaves room for future upgrades—adding another SSD, upgrading to more RAM, or installing additional fans.
Think about potential additions you might install down the road. If you're managing a small business or setting up an intricate water-cooled system with RGB lights, those elements need power too. Future-proofing your purchase saves you from frequent replacements later.
Avoiding Underpowering and Overpowering Mistakes
Underpowering is the bigger risk. When your PSU can't deliver correct electrical current, your PC shuts down to prevent damage. You'll see crashes, blue screens, or the system won't boot at all. Components can get damaged from receiving inconsistent power.
Overpowering wastes money. A 1200W unit for a 400W build costs more upfront. Plus, power supplies work best at 50-80% load. Running a massive PSU at 30% capacity is less efficient, meaning higher electricity bills and more heat generation.
The sweet spot? A unit that's 20-30% above your estimated usage. If your bottleneck calculator and wattage tool suggest 550W total draw, a 650W or 750W supply hits that perfect balance.
Understanding PSU Form Factors and Compatibility
Not every power supply fits every case. Form factor matters. Standard ATX units are the most common and fit mid-tower and full-tower cases. They come in various wattages, suitable for most builds.
SFX supplies are designed for smaller cases. These compact units fit in constrained spaces but still deliver serious power—you can find 750W SFX models easily.
First, make sure your PSU matches your case's specific shape and space requirements. Check your case specifications to verify compatibility before buying. Newegg and similar sites let you filter by form factor, making selection easier.
Decoding 80 PLUS Certification Ratings
The 80 PLUS Certification tells you how efficient your PSU is at turning AC power from your wall into usable DC power for components. Higher ratings mean less wasted energy as heat.
The levels go: Bronze, Silver, Gold, Platinum, and Titanium. A Gold-rated unit converts about 87-90% of power efficiently at typical loads. Titanium hits 94% or better.
Better efficiency ratings mean lower electricity consumption, reducing your bills over time. They also generate less heat, which helps your PC run cooler and quieter.
For everyone from personal users to professionals managing servers, energy-efficient supplies are beneficial. You save money, reduce environmental impact, and get more reliable performance. Gold or Platinum ratings offer the best value for most builds.
Top Brands You Should Actually Buy
Not all power supplies are created equal. Stick with trusted brands that have proven track records. Corsair, EVGA, Seasonic, Cooler Master, Silverstone, FSP (Fortron), Thermaltake, and Rosewill all offer reliable models.
Seasonic makes some of the most efficient units on the market. Corsair has options for every budget and build type. EVGA provides excellent warranties and customer service.
Browse products from these popular manufacturers when you shop. Look for models tailored to gaming PCs or professional workstations. Each brand offers different product lines—explore their offerings to find the option that fits your preferences and budget.
How to Use This Calculator Step-by-Step
Start with your CPU. Select the manufacturer (Intel or AMD), then pick your socket type from the dropdown. Choose your exact processor model. This data forms the foundation of your estimate.
Add your motherboard by selecting its form factor. Then configure your GPU—brand (NVIDIA or AMD) and the specific graphics card model you plan to use or already have installed.
Enter your RAM specifications: type (DDR3, DDR4, or DDR5) and the number of sticks. Each stick adds to consumption.
Add storage devices. For each SSD, note the size (GB or TB) and quantity. For HDDs, include the RPM rating and how many you'll install. Don't forget optical drives if you're adding CD-ROM, DVD, Blu-ray, or combo drives.
Include any peripherals, fans, sound cards, or RGB lighting. The more detail you input, the more accurate your results will be.
Hit calculate. The tool estimates your total wattage and suggests a recommended PSU size with built-in headroom. Use this as your shopping guide when selecting the perfect power supply.
Real-World Example: Building a High-End Gaming PC
Let's say you're building with an Intel Core i7-14700K, an NVIDIA RTX 4080, 32GB of DDR5 RAM (four sticks), one 2TB NVMe SSD, and one 4TB HDD at 7200 RPM. You've got an ATX motherboard and plan to add RGB fans and a Blu-ray drive.
Input all these components. The calculator adds the CPU's 125W TDP, the GPU's 320W draw, RAM consumption (about 20W total), storage (15W for SSD, 10W for HDD), motherboard (50W), and peripherals (25W).
Total estimated usage: around 565W. The suggested wattage? At least 750W, giving you 185W of headroom. This buffer handles power spikes and leaves room for checking overclocking in CPU GPU down the road.
A quality 750W Gold-rated unit from Corsair or Seasonic would be the wise choice. You're protected, efficient, and ready for upgrades.
What About UPS and Battery Backup?
A UPS (uninterruptible power supply) pairs with your PSU to protect against outages, surges, and voltage fluctuations. It's a battery backup that kicks in during power loss, giving you time to safely shut down your system.
When selecting a UPS, you need to know your total power load. Use your PSU wattage calculation as the baseline. A UPS should handle at least your system's maximum draw, plus a margin for protection.
For optimal setup, pair a 750W PSU with a 1000VA UPS. This configuration ensures you're covered even under peak load. It's essential for anyone who can't afford unexpected shutdowns—gamers mid-stream, content creators rendering, or small businesses running critical applications.
Common Mistakes People Make When Calculating
Forgetting future upgrades: You build for today's components but forget you might add another SSD or upgrade your GPU next year. Always account for potential additions.
Ignoring efficiency ratings: People buy a 600W Bronze unit when a 650W Gold costs $20 more. The Gold pays for itself through lower electricity costs and better component protection.
Not checking cable requirements: Your high-end GPU needs at least one 8-pin and one 6-pin connector. Make sure your PSU includes the necessary cables—both pin types and enough EPS connectors for your motherboard.
Buying based on brand alone: Even top brands make budget lines with lower quality. Check reviews, look at efficiency certification, and verify the model is suitable for your build type.
How This Helps You Save Money and Avoid Problems
Accurate calculations prevent two expensive problems. First, buying underpowered units that cause crashes, potential component damage, and the need to purchase a replacement PSU immediately.
Second, avoiding overpowered supplies that cost more upfront and waste electricity. A cost-effective approach means buying exactly what you need with appropriate headroom.
Using a best power supply gaming PC guide alongside this calculator helps you make informed purchases. You're spending money on quality and capacity that actually serves your build, nothing more, nothing less.
Special Considerations for High-End and Custom Builds
Multi-GPU setups like SLI or Crossfire configurations need serious power. Two RTX 4090s can pull 900W combined, not counting the rest of your system. In these circumstances, 1200W or 1500W supplies aren't overkill—they're required.
Custom water-cooling loops add pumps, fans, and RGB elements that all draw power. Each component matters. Accurately estimate every device in your loop.
Professional workstations running server-grade hardware or multiple storage drives need similar planning. A video editor with six HDDs, two SSDs, and a high-end GPU might need 850W even without overclocking.
The calculator handles these intricate builds. Just input each component according to your configuration. The tool adapts to complex setups, providing precise recommendations for even the most demanding custom PCs.
How to Verify Your PSU Size After Purchase
Once you've bought your unit, verify it matches your calculated usage. The simplest way? Check the label on the PSU itself. It typically shows the maximum wattage it can provide, representing its capacity.
Look for the 12V rail rating. This is where your CPU and GPU get power. A quality unit should deliver most of its wattage through the 12V rails. For example, a 750W supply should provide at least 62 amps on the 12V line.
Cross-reference the manufacturer website for full specifications. They list every detail—number of connectors, efficiency rating, physical dimensions, and warranty terms. Make sure everything fits your build correctly before installation.
Why Non-Retail and Generic PSUs Are Risky
Generic or non-retail power supplies often lack proper safety features. They might claim 600W on the box but only deliver 400W under load. Worse, they can fail catastrophically, taking your entire system with them.
Stick with retail products from established brands. These units undergo testing, carry certifications, and include warranties. If something goes wrong, you're covered.
The $30 you save on a generic PSU isn't worth risking $2,000 in components. Always filter for trusted manufacturers when shopping. Quality matters more than price when it comes to delivering stable electrical current to expensive hardware.
Keeping Your Build Balanced for Performance
Power supply size is just one piece of building a balanced PC. Your best gaming CPU GPU combo 2026 needs proper power delivery, but it also needs good airflow, quality components, and a case that fits everything.
Think about the big picture. A perfectly sized PSU won't fix thermal issues or poor cable management. But it ensures your components get clean, stable power, which is the foundation of reliable performance.
Consider the lifespan gaming PC components have when properly powered. Quality PSUs last 7-10 years. Invest once, and you're set through multiple upgrade cycles.
Final Thoughts on Getting This Right
Your power supply determines whether your build is stable or a ticking time bomb. Too small, and you'll deal with crashes and shutdowns. Too large, and you're throwing money away on capacity you don't need.
This PSU Wattage Calculator eliminates guesswork. Input your exact components—CPU, GPU, RAM, storage, and peripherals. Get a recommended wattage that accounts for real-world usage plus safety margin.
Shop for a unit that's 20-30% above your estimated draw. Look for Gold or Platinum efficiency. Choose trusted brands. Verify cable compatibility. Check form factor against your case.
Do this right, and your system runs stable for years. Skip this step, and you're gambling with expensive hardware. The choice is yours, but the calculator makes the right choice obvious.
Stop Guessing. Start Building Smart.
You've got the knowledge. Now use the PSU Wattage Calculator above to get your exact power requirements in under two minutes. Input your components, get your recommended wattage, then shop with confidence knowing you're buying the right supply for your build.
No more crashes. No more wasted money. Just stable, reliable power delivery for gaming, work, or whatever you throw at your PC. Calculate now, build right, and enjoy years of trouble-free performance.
